Customer Documentation: Neonode® Touch Sensor Module User's Guide : .Product Design and Components v1.0
The zForce AIR Touch Sensor is a laser light based touch sensor that can be used for various touch and mid-air detection applications. The sensor is available in varying sizes, see Product Variants.
Sensor Design

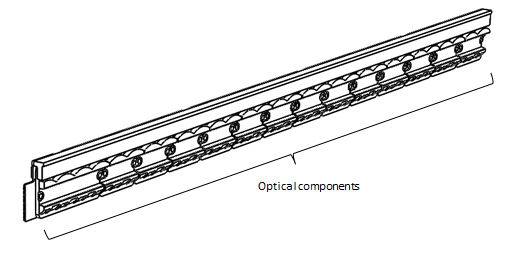

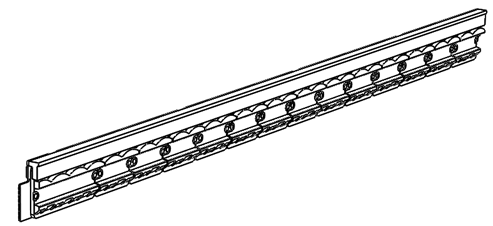

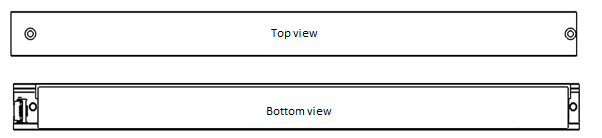

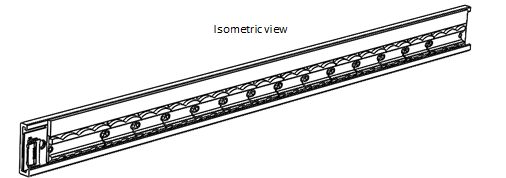

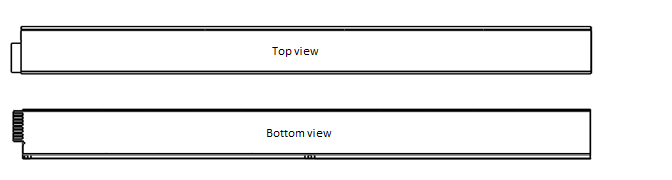

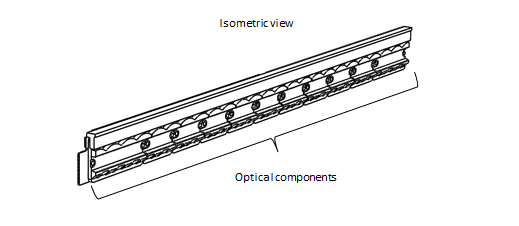

The image below show the sensor design (0° type). The connector is shown to the far right.

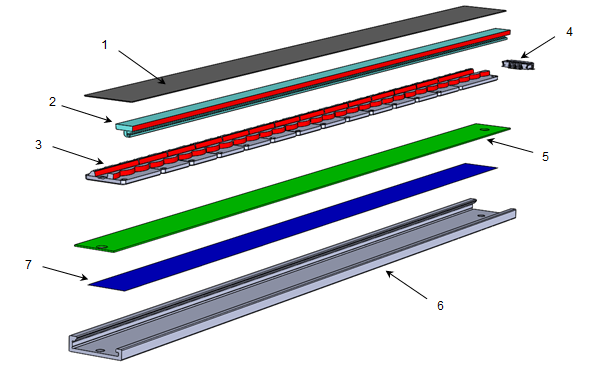

Exploded view

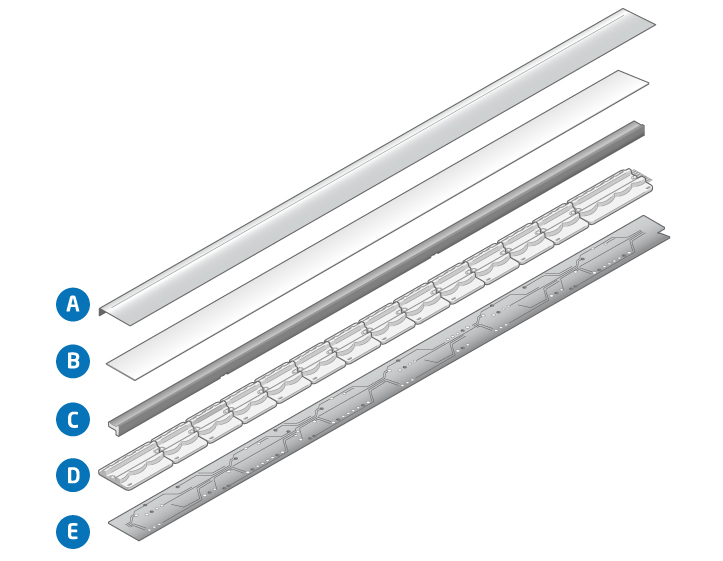

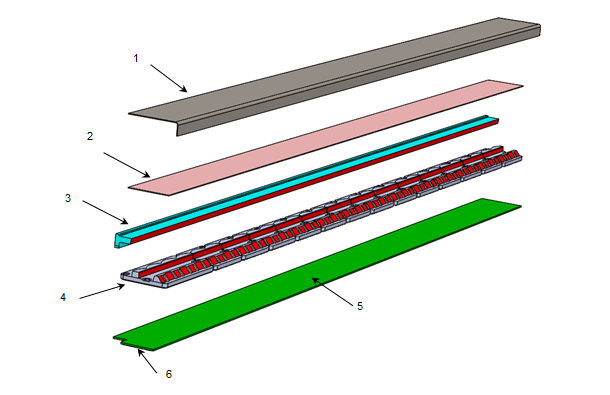

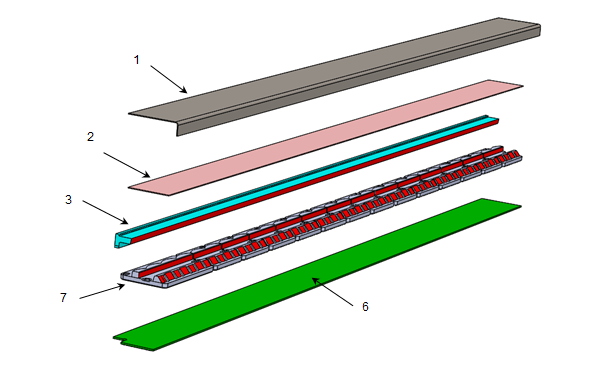

The image below shows the sensor (0° type) in an exploded view.
Sensor Components
The PCBA is equipped with both active and passive components, for example:
- MCU
- Co-processor, a Neonode proprietary scanning IC
- Optical lenses, made out of polycarbonate
- VCSELs
- Photodiodes
- Other passive components
