All the sizes are presented in millimeters.
A - the width of the Touch Active Area (TAA), X - axis.
B - the length of the TAA, Y - axis.
C - the physical length of the sensor.
D - the distance/withdrawal from the edge of the sensor to the edge of the TAA.
Different Touch Sensor Module types vary in physical length, dimensions C and D, and thus also in the TAA sizes, dimensions A and B. Touch Sensor Modules with A ? 237.6 mm are long enough to use a scanning pattern that extends the active area in the Y-direction. These come in two variants: with a default TAA length (B), so called non-extended range and with an extended TAA length, extended range. Extended range is a Firmware feature which requires certain Firmware release (see the tables below). Extended Range can affect the power consumption and the accuracy.
The availability, the dimensions and the required Firmware releases for the Neonode® Touch Sensor Modules are summarized in the tables below (Table 1 and 2).
Table 1. Neonode Touch Sensor Modules available for purchase:
| Product number | Measurements (mm) | Extended Range supported from Firmware Version | |||||
|---|---|---|---|---|---|---|---|
| 0° | 90° | A | B, non-extended range | B, extended range | C | D | |
| NNAMC1011PC01 | 100.8 | 74.5 | 104.8 | 2 | |||
| NNAMC1150PC01 | NNAMC1151PC01 | 115.2 | 89.4 | 119.2 | 2 | ||
| NNAMC1220PC01 | NNAMC1221PC01 | 122.4 | 104.3 | 127.9 | 3.5 | ||
| NNAMC1580PC01 | NNAMC1581PC01 | 158.4 | 134.0 | 162.4 | 2 | ||
| NNAMC1800PC01 | NNAMC1801PC01 | 180 | 163.8 | 185.5 | 3.5 | ||
| NNAMC2090PC01 | NNAMC2091PC01 | 208.8 | 193.6 | 214.3 | 3.5 | ||
| NNAMC2300PC01 | NNAMC2301PC01 | 230.4 | 208.5 | 234.4 | 2 | ||
| NNAMC2950PC01 | NNAMC2951PC01 | 295.2 | 208.5 | 283.0 | 300.7 | 3.5 | v.1.53 Extended Range |
| NNAMC3100PC01 | NNAMC3101PC01 | 309.6 | 208.5 | 297.9 | 315.1 | 3.5 | v.1.53 Extended Range |
| NNAMC3460PC01 | NNAMC3461PC01 | 345.6 | 208.5 | 327.7 | 349.6 | 2 | v.1.49 Extended Range |
| NNAMC3740PC01 | 374.4 | 208.5 | 378.4 | 2 |
Table 2. Neonode Touch Sensor Module available upon request:
| Product number | Measurements (mm) | Extended Range supported from Firmware Version | |||||
|---|---|---|---|---|---|---|---|
| 0° | 90° | A | B, non-extended range | B, extended range | C | D | |
| NNAMC0430PC01 | NNAMC0431PC01 | 43.2 | 14.9 | 47.2 | 2 | ||
| NNAMC0500PC01 | NNAMC0501PC01 | 50.4 | 29.8 | 55.9 | 3.5 | ||
| NNAMC0580PC01 | NNAMC0581PC01 | 57.6 | 29.8 | 61.6 | 2 | ||
| NNAMC0640PC01 | NNAMC0641PC01 | 64.8 | 44.7 | 70.3 | 3.5 | ||
| NNAMC0720PC01 | NNAMC0721PC01 | 72 | 44.7 | 76 | 2 | ||
| NNAMC0790PC01 | NNAMC0791PC01 | 79.2 | 59.6 | 84.7 | 3.5 | ||
| NNAMC0860PC01 | NNAMC0861PC01 | 86.4 | 59.6 | 90.4 | 2 | ||
| NNAMC0940PC01 | NNAMC0941PC01 | 93.6 | 74.5 | 99.1 | 3.5 | ||
| NNAMC1010PC01 | 100.8 | 74.5 | 104.8 | 2 | |||
| NNAMC1080PC01 | NNAMC1081PC01 | 108 | 89.4 | 113.5 | 3.5 | ||
| NNAMC1300PC01 | NNAMC1301PC01 | 129.6 | 104.3 | 133.6 | 2 | ||
| NNAMC1370PC01 | NNAMC1371PC01 | 136.8 | 119.2 | 142.3 | 3.5 | ||
| NNAMC1440PC01 | NNAMC1441PC01 | 144 | 119.2 | 148 | 2 | ||
| NNAMC1510PC01 | NNAMC1511PC01 | 151.2 | 134.0 | 156.7 | 3.5 | ||
| NNAMC1660PC01 | NNAMC1661PC01 | 165.6 | 148.9 | 171.1 | 3.5 | ||
| NNAMC1730PC01 | NNAMC1731PC01 | 172.8 | 148.9 | 176.8 | 2 | ||
| NNAMC1870PC01 | NNAMC1871PC01 | 187.2 | 163.8 | 191.2 | 2 | ||
| NNAMC1940PC01 | NNAMC1941PC01 | 194.4 | 178.7 | 199.9 | 3.5 | ||
| NNAMC2020PC01 | NNAMC2021PC01 | 201.6 | 178.7 | 205.6 | 2 | ||
| NNAMC2160PC01 | NNAMC2161PC01 | 216 | 193.6 | 220 | 2 | ||
| NNAMC2230PC01 | NNAMC2231PC01 | 223.2 | 208.5 | 228.7 | 3.5 | ||
| NNAMC2380PC01 | NNAMC2381PC01 | 237.6 | 208.5 | 223.4 | 243.1 | 3.5 | v.1.38 |
| NNAMC2450PC01 | NNAMC2451PC01 | 244.8 | 208.5 | 223.4 | 248.8 | 2 | v.1.38 |
| NNAMC2520PC01 | NNAMC2521PC01 | 252 | 208.5 | 238.3 | 257.5 | 3.5 | v.1.38 |
| NNAMC2590PC01 | NNAMC2591PC01 | 259.2 | 208.5 | 238.3 | 263.2 | 2 | v.1.38 |
| NNAMC2660PC01 | NNAMC2661PC01 | 266.4 | 208.5 | 253.2 | 271.9 | 3.5 | v.1.38 |
| NNAMC2740PC01 | NNAMC2741PC01 | 273.6 | 208.5 | 253.2 | 277.6 | 2 | v.1.38 |
| NNAMC2810PC01 | NNAMC2811PC01 | 280.8 | 208.5 | 268.1 | 286.3 | 3.5 | v.1.38 |
| NNAMC2880PC01 | NNAMC2881PC01 | 288 | 208.5 | 268.1 | 292 | 2 | v.1.38 |
| NNAMC3020PC01 | NNAMC3021PC01 | 302.4 | 208.5 | 283.0 | 306.4 | 2 | v.1.38 |
| NNAMC3170PC01 | NNAMC3171PC01 | 316.8 | 208.5 | 297.9 | 320.8 | 2 | v.1.38 |
| NNAMC3240PC01 | NNAMC3241PC01 | 324 | 208.5 | 312.8 | 329.5 | 3.5 | v.1.38 |
| NNAMC3310PC01 | NNAMC3311PC01 | 331.2 | 208.5 | 312.8 | 335.2 | 2 | v.1.38 |
| NNAMC3380PC01 | NNAMC3381PC01 | 338.4 | 208.5 | 327.7 | 343.9 | 3.5 | v.1.38 |
| NNAMC3741PC01 | 374.4 | 357.4 | 378.4 | 2 | v.1.53 Extended Range |
Standard Touch Sensor Modules can be purchased from our retailer, DigiKey.
Customized Touch Sensor Module lengths are available at a MOQ and a NRE-fee. Please contact your local Area Sales Director or sales@neonode.com for further information.
Side View
These measurements are identical for all sensor module's lengths but vary some between the 0° and 90 ° types. The position of origin is marked with "zero software".
0° Type

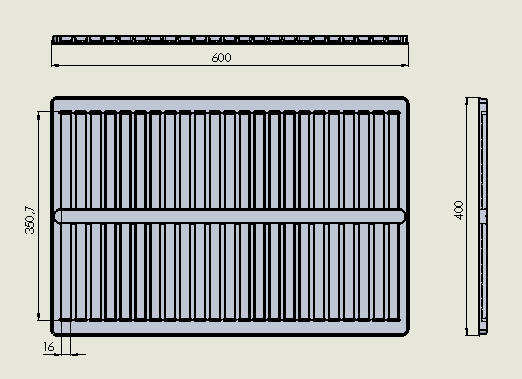

Packaging
Please refer to Packaging Blueprints in Downloads for further information.
