Customer Documentation: Neonode® Touch Sensor Module User's Guide : .Mechanical Data v2.4
Physical Dimensions and Position of OriginTop View
Dimensions C and D vary between the Touch Sensor Module types (0° and 90°) and therefore also the Touch Active Area (TAA) sizes (A and B). For Touch Sensor Module types with A ? 237.6 mm, dimension B also depends on the installed firmware version.
| Product number | Measurements (mm) | ||||
|---|---|---|---|---|---|
| 0° | 90° | A | B | C | D |
| NNAMC0430PC01 | NNAMC0431PC01 | 43.2 | 14.9 | 47.2 | 2 |
| NNAMC0500PC01 | NNAMC0501PC01 | 50.4 | 29.8 | 55.9 | 3.5 |
| NNAMC0580PC01 | NNAMC0581PC01 | 57.6 | 29.8 | 61.6 | 2 |
| NNAMC0640PC01 | NNAMC0641PC01 | 64.8 | 44.7 | 70.3 | 3.5 |
| NNAMC0720PC01 | NNAMC0721PC01 | 72 | 44.7 | 76 | 2 |
| NNAMC0790PC01 | NNAMC0791PC01 | 79.2 | 59.6 | 84.7 | 3.5 |
| NNAMC0860PC01 | NNAMC0861PC01 | 86.4 | 59.6 | 90.4 | 2 |
| NNAMC0940PC01 | NNAMC0941PC01 | 93.6 | 74.5 | 99.1 | 3.5 |
| NNAMC1010PC01 | NNAMC1011PC01 | 100.8 | 74.5 | 104.8 | 2 |
| NNAMC1080PC01 | NNAMC1081PC01 | 108 | 89.4 | 113.5 | 3.5 |
| NNAMC1150PC01 | NNAMC1151PC01 | 115.2 | 89.4 | 119.2 | 2 |
| NNAMC1220PC01 | NNAMC1221PC01 | 122.4 | 104.3 | 127.9 | 3.5 |
| NNAMC1300PC01 | NNAMC1301PC01 | 129.6 | 104.3 | 133.6 | 2 |
| NNAMC1370PC01 | NNAMC1371PC01 | 136.8 | 119.2 | 142.3 | 3.5 |
| NNAMC1440PC01 | NNAMC1441PC01 | 144 | 119.2 | 148 | 2 |
| NNAMC1510PC01 | NNAMC1511PC01 | 151.2 | 134.0 | 156.7 | 3.5 |
| NNAMC1580PC01 | NNAMC1581PC01 | 158.4 | 134.0 | 162.4 | 2 |
| NNAMC1660PC01 | NNAMC1661PC01 | 165.6 | 148.9 | 171.1 | 3.5 |
| NNAMC1730PC01 | NNAMC1731PC01 | 172.8 | 148.9 | 176.8 | 2 |
| NNAMC1800PC01 | NNAMC1801PC01 | 180 | 163.8 | 185.5 | 3.5 |
| NNAMC1870PC01 | NNAMC1871PC01 | 187.2 | 163.8 | 191.2 | 2 |
| NNAMC1940PC01 | NNAMC1941PC01 | 194.4 | 178.7 | 199.9 | 3.5 |
| NNAMC2020PC01 | NNAMC2021PC01 | 201.6 | 178.7 | 205.6 | 2 |
| NNAMC2090PC01 | NNAMC2091PC01 | 208.8 | 193.6 | 214.3 | 3.5 |
| NNAMC2160PC01 | NNAMC2161PC01 | 216 | 193.6 | 220 | 2 |
| NNAMC2230PC01 | NNAMC2231PC01 | 223.2 | 208.5 | 228.7 | 3.5 |
| NNAMC2300PC01 | NNAMC2301PC01 | 230.4 | 208.5 | 234.4 | 2 |
| Product number | Measurements, Non-Extended Range (mm) |
Measurements, Extended Range (mm) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0° | 90° | A | B | C | D | From Firmware Version | A | B | C | D | From Firmware Version |
| NNAMC2380PC01 | NNAMC2381PC01 | 237.6 | 208.5 | 243.1 | 3.5 | v1.38 | 237.6 | 223.4 | 243.1 | 3.5 | Available on request |
| NNAMC2450PC01 | NNAMC2451PC01 | 244.8 | 208.5 | 248.8 | 2 | v1.38 | 244.8 | 223.4 | 248.8 | 2 | Available on request |
| NNAMC2520PC01 | NNAMC2521PC01 | 252 | 208.5 | 257.5 | 3.5 | v1.38 | 252 | 238.3 | 257.5 | 3.5 | Available on request |
| NNAMC2590PC01 | NNAMC2591PC01 | 259.2 | 208.5 | 263.2 | 2 | v1.38 | 259.2 | 238.3 | 263.2 | 2 | Available on request |
| NNAMC2660PC01 | NNAMC2661PC01 | 266.4 | 208.5 | 271.9 | 3.5 | v1.38 | 266.4 | 253.2 | 271.9 | 3.5 | Available on request |
| NNAMC2740PC01 | NNAMC2741PC01 | 273.6 | 208.5 | 277.6 | 2 | v1.38 | 273.6 | 253.2 | 277.6 | 2 | Available on request |
| NNAMC2810PC01 | NNAMC2811PC01 | 280.8 | 208.5 | 286.3 | 3.5 | v1.38 | 280.8 | 268.1 | 286.3 | 3.5 | Available on request |
| NNAMC2880PC01 | NNAMC2881PC01 | 288 | 208.5 | 292 | 2 | v1.38 | 288 | 268.1 | 292 | 2 | Available on request |
| NNAMC2950PC01 | NNAMC2951PC01 | 295.2 | 208.5 | 300.7 | 3.5 | v1.38 | 295.2 | 283.0 | 300.7 | 3.5 | v.1.53 Extended Range |
| NNAMC3020PC01 | NNAMC3021PC01 | 302.4 | 208.5 | 306.4 | 2 | v1.38 | 302.4 | 283.0 | 306.4 | 2 | Available on request |
| NNAMC3100PC01 | NNAMC3101PC01 | 309.6 | 208.5 | 315.1 | 3.5 | v1.38 | 309.6 | 297.9 | 315.1 | 3.5 | v.1.53 Extended Range |
| NNAMC3170PC01 | NNAMC3171PC01 | 316.8 | 208.5 | 320.8 | 2 | v1.38 | 316.8 | 297.9 | 320.8 | 2 | Available on request |
| NNAMC3240PC01 | NNAMC3241PC01 | 324 | 208.5 | 329.5 | 3.5 | v1.38 | 324 | 312.8 | 329.5 | 3.5 | Available on request |
| NNAMC3310PC01 | NNAMC3311PC01 | 331.2 | 208.5 | 335.2 | 2 | v1.38 | 331.2 | 312.8 | 335.2 | 2 | Available on request |
| NNAMC3380PC01 | NNAMC3381PC01 | 338.4 | 208.5 | 343.9 | 3.5 | v1.38 | 338.4 | 327.7 | 343.9 | 3.5 | Available on request |
| NNAMC3460PC01 | NNAMC3461PC01 | 345.6 | 208.5 | 349.6 | 2 | v1.38 | 345.6 | 327.7 | 349.6 | 2 | v1.49 Extended Range |
| NNAMC3740PC01 | 374.4 | 208.5 | 378.4 | 2 | v1.53 | 374.4 | 357.4 | 378.4 | 2 | v.1.53 Extended Range |
Side View
These measurements are identical for all sensor module's lenghts but vary some between the 0° and 90 ° types. The position of origin is marked with "zero software".
0° Type

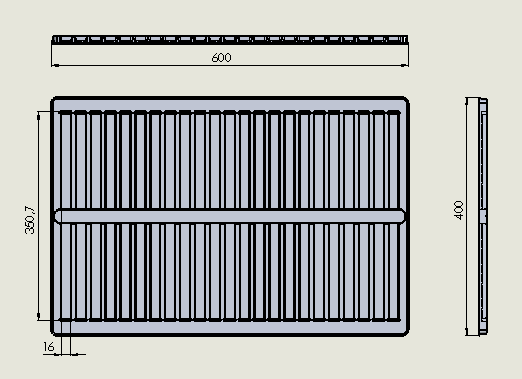

Packaging
Please refer to Packaging Blueprints in Downloads for further information.
