Product Overview

The zForce AIR Touch Sensor is a laser light based touch sensor that can be integrated and used in various applications. The sensor characteristics are high scanning frequency, low latency, good touch accuracy and it can be used on any surface or even in mid air. zForce AIR Touch Sensor can be connected to the host system through a standard connector and communicate through a standard I2C or USB interface.

Main Features

• Enables touch on any surface or in mid air

• Dual touch support

• High scanning frequency – up to 200Hz or more depending on sensor length

• Low touch latency

• High touch accuracy

• Idle mode for reduced current power consumption

• Configurable touch active area

• I2C and USB interface

• Standard 5V power supply

Product Variants

In order to fit in a wide range of applications, the zForce AIR Touch Sensor exists in two types, one for horizontal and one for vertical integration, and a number of different lengths.

Sensor Orientation

The zForce AIR Touch Sensor is available in two types, one where the active area emerges straight out from the sensor (0° type) and one where it emerges out from the sensor at a 90° angle (90° type). This enables both vertical and horizontal integration.

0° Type



90° Type

Sensor Length

The Touch Sensor is available in 43 different lengths. The length affects the Touch Active Area (TAA) in both X and Y directions.

Touch Active Area

The tables list all product variants, the product number, the TAA, and, if applicable, the TAA with Extended Range for each variant. See also Mechanical Data.

Sensors with X ? 237.6 mm are long enough to use a scanning pattern that extends the active area in the Y-direction. The use of the Extended Range scanning pattern is supported from different firmware versions for different product variants, see the following tables.. Extended Range can affect the power consumption and the accuracy.





Basic Principles

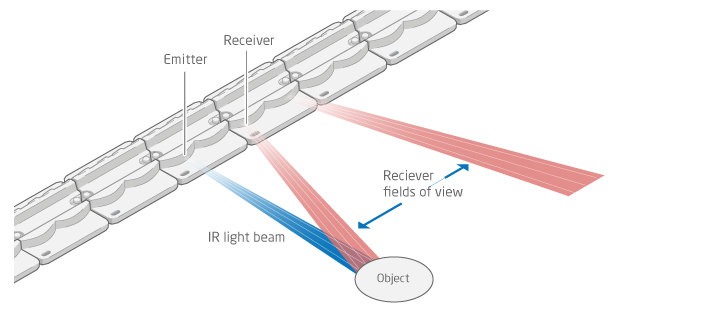

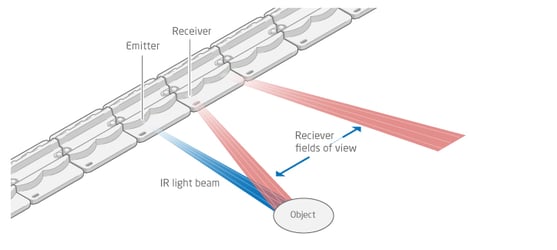

zForce AIR Touch Sensors detect and trace objects by detecting diffusely reflected infrared light. The sensor comprises an optical system arranged to combine emitted IR beams and receiver fields of view within the same apertures. IR light beams are emitted perpendicular to the output window, while receivers field of view is centered at a certain angle left and right.

Each emitter-receiver combination covers a narrow region on the active area. An object present in the active area will affect several emitter-receiver channels, and the reported coordinates is the outcome of a center of gravity calculation on these signals.

Multi-Touch Functionality

zForce AIR Touch Sensor determine an object's position by signals derived from emitter-receiver pairs and have the capacity to detect and track several objects at the same time. Both the hardware and the software have been optimized in order to support standard touch gestures like, pinch-to-zoom, rotate, swipe and tap. However, some combinations of two or more objects might require special consideration, which is described in more detail below.

Shadows

• An object directly behind another object cannot be illuminated. In the figure above, object A will not be detected since illumination is blocked by object B.
• The correct receiver must have a clear field of view. Object B is in a region covered only by left looking receivers. Object B will not be detected because its field of view is blocked by object D.
• Object C may be seen by both left and right looking receivers. Although the right looking field of view is blocked by object D, object C is detected by the left looking receiver.
• Object D is detected by both left and right looking receivers.

Shadow Trick

Note that in most cases, user experience is not affected by the shadow situations mentioned above. This is because of a functionality implemented in the Touch Sensor firmware called "shadow trick", which e.g. generates a smooth "rotate" feeling despite one touch object being shadowed during the rotate gesture. A previously detected object that can no longer be detected is still reported as present if:

• The object was last seen close to a location where it could be shadowed by another object.
• The potentially shadowing object is still detected and hasn't moved away from a shadowing location.

The shadow trick make multi-touch gestures such as "rotate" and "pinch-to-zoom" work better.

Adjacent Objects

• In order to recognize two objects close to each other (A and B), a separation must allow at least one emitter-receiver channel (~10 mm) to pass freely between them. Otherwise, the two objects will be reported as one large object.

More Than Two Objects

When more than two objects are being tracked the likelihood that an object ends up being in the shadow of another object increases. Therefore, it is only recommended to enable more than two tracked objects if, for example:

• it is not vital to track all detected objects 100% in all possible combinations and locations at all time.

When all objects are likely to be detected by the sensor, for example when it is expected that all objects will be placed along a line that is parallel to the sensor, as in the example below.

Applications

zForce AIR Touch Sensors can be integrated for a wide range of applications, such as:

• PCs/Tablets
• TVs/Monitors
• Printers
• Mechanical key replacement
• White goods
• Smart furniture
• Interactive mirrors
• Elevator panels
• eReaders
• Instruments
• Vending Machines
• ATM/POS terminals
• Robotics
• Range finders
• Collision detectors
• ... and much more

Sensor Design and Components

The zForce AIR Touch Sensor is a laser light based touch sensor that can be used for various touch and mid-air detection applications. The image below show the sensor design (0° type). The connector is shown to the far right.



Exploded view

The image below shows the sensor (0° type) in an exploded view.

Sensor Components

 The PCBA is equipped with both active and passive components, for example:

• MCU
• Co-processor, a Neonode proprietary scanning IC
• Optical lenses, made out of polycarbonate
• VCSELs
• Photodiodes
• Other passive components

Product Integration

The zForce AIR Touch Sensor can be integrated into any host system through a physical connector with 8 contact pads. The connector supports both I2C and USB HID.

The sensor communicates with messages that are defined in ASN.1-notation. ASN.1 is a standardized way (ISO/IEC 8824) to describe data regardless of language implementation, hardware system and operation system. The host system can communicate with the sensor using the zForce communication protocol.

To facilitate integration, Neonode has developed function libraries that are available for download.
