Neonode® Touch Sensor Module User's Guide : Update Firmware
Created by Unknown User (nike.olabiyi), last modified on Mar 18, 2024

Neonode Touch Sensor Module Firmware is flashed and configured with the zForceProgrammer tool. Download zForceProgrammer here: Downloads.



For information, see Getting started with zForceProgrammer.

Configuring the parameters in the zForceProgrammer tool is only available for Neonode Touch Sensor Module Firmware 2.0 and later.

Firmware Release Notes Comparison Matrix zForceAIR 1.55 vs NTSMF 2.0

Area Sub-Area

Neonode zForzeAIR 1.55

NTSMF 2.0
Hardware Sizes and products

Neonode Touch Sensor Module 1.7.2 :

  • 101
  • 115
  • 122
  • 158
  • 180
  • 209
  • 230
  • 295
  • 310
  • 346
  • 374

Neonode Touch Sensor Module 1.7.2 :

  • 101
  • 115
  • 122
  • 158 – From production date 14th of April 2021
  • 180
  • 209
  • 230
  • 295
  • 310
  • 346

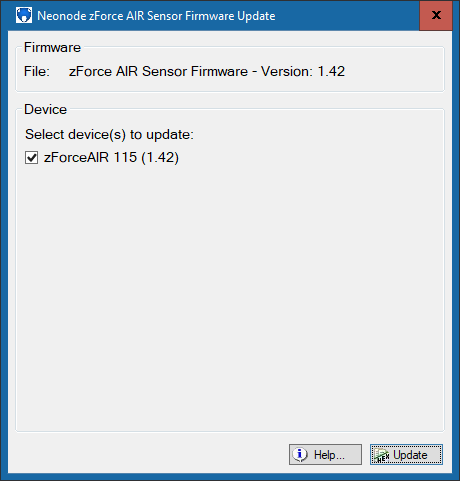

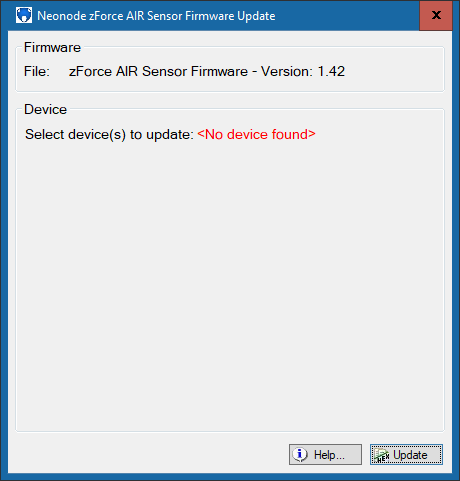

Installation   Installed using Firmware Update tool Installed using zForce Programmer tool
Configuration Changing configuration

Using the Neonode Workbench tool (or any other software that uses ASN.1 for configuration) the configuration can be changed in runtime. This runtime configuration can not be saved to the Touch Sensor Module permanently. The Touch Sensor Module will always use the default configuration after reboot and after flashing a new firmware.

Using the Neonode Workbench tool (or any other software that uses ASN.1 for configuration) the configuration can be changed in runtime. This runtime configuration can not be saved to the Touch Sensor Module permanently. The Touch Sensor Module will always use the default configuration after reboot and after being re-flashed.

Using the zForce Programmer tool, the configuration can be stored persistently.

Note however that the default configuration is always restored after flashing a new firmware.
Communication ASN.1 protocol version 1.9 1.11
  HID Yes Yes
  I2C Yes Yes
Functionality

Persistent Parameters

 No Yes, possible when using the zForce Programmer tool.
  Multi finger support (up to ten fingers). Yes Yes
  Click On Touch Yes Yes
  Floating Protection  Yes Yes
  Reflective edge Yes Yes
  Utilization of max possible TAA
  • 101
  • 115
  • 122
  • 158
  • 180
  • 209
  • 230
  • 295 – Extended range firmware
  • 310 - Extended range firmware
  • 346 - Extended range firmware
  • 374 - Extended range firmware
  • 101
  • 115
  • 122
  • 158 – From production date 14th of April 2021
  • 180
  • 209
  • 230
  • 295
  • 310
  • 346
  Flip X/Y Yes Yes
  Merge touches Yes No. The functionality is removed in FW 2.0 and later.
  Arduino Support using the Neonode Arduino Lib Yes Yes



Read More
