Neonode® Touch Sensor Module User's Guide : Required Equipment using Interface board

Neonode® Touch Sensor Module User's Guide : Required Equipment using Interface board

Created by Unknown User (nike.olabiyi) on Feb 23, 2022

The following equipment from the evaluation kit is required:

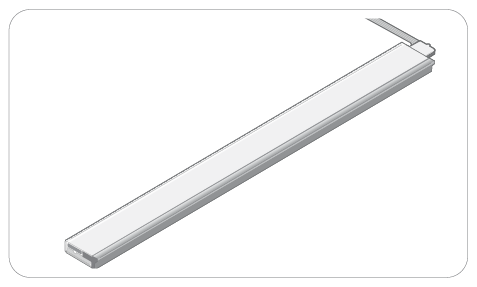

  • 1 x Neonode Touch Sensor Module
  • 1 x Interface board with an integrated FPC cable with connector
    alternately 1 x Interface board and 1 x FPC cable with connector

  • USB cable with a Micro USB type B connector

    Make sure that the USB cable transmits both power and data and not only power.

  • (Optional) tape for mounting
